ALL-NEW FPGA-BASED PROCESSING PLATFORM
WITH A UNIQUE TOPOLOGY
VERY HIGH QUALITY FPGA ASRC AND SSRC
WITH OUTSTANDING DYNAMIC RANGE
AND ULTRA-LOW DISTORTION
UP TO 15 DIFFERENT OPTIONS
FOR CLOCK SOURCES
VIRTUALLY UNLIMITED NUMBER
OF AVAILABLE FILTERS
(USING OUTLINE’S EXCLUSIVE
‘WFIR*’ FILTERING TECHNOLOGY)
INDEPENDENT, INTERNAL DUAL-REDUNDANT
UNIVERSAL AC MAINS SUPPLIES
FITTED AS STANDARD, WITH DUAL COOLING FANS
RAISED COSINE FILTERING TECHNOLOGY
UNRIVALLED INPUT AND OUTPUT CONFIGURATION:
216 IN BOTH DIRECTIONS SIMULTANEOUSLY
FAIL-SAFE BACK-UP STRATEGIES
COST-EFFECTIVE AND EFFICIENT SOLUTION
FULLY AUTOMATIC CLOCK SOURCE
AND AUDIO SIGNAL SWITCHOVER FACILITIES
FULLY CONTROLLABLE VIA
OUTLINE DASHBOARD™ SOFTWARE
FOR MAC OS
AVAILABLE IN THREE HARDWARE VERSIONS
TO SUIT THE APPLICATION OR PROJECT
ALL MODELS ENGINEERED INTO
A SINGLE RACK SPACE (1U) CHASSIS
Outline is proud to introduce Newton, the next generation in audio system control and networking. Newton advances the management of sophisticated audio systems by combining new filter technology, multi-format audio signal routing, multi-format standards conversion and digital signal synchronisation in a single 1RU networkable chassis
AVAILABLE IN 3 HARDWARE VERSIONS
Newton comes in three hardware versions:

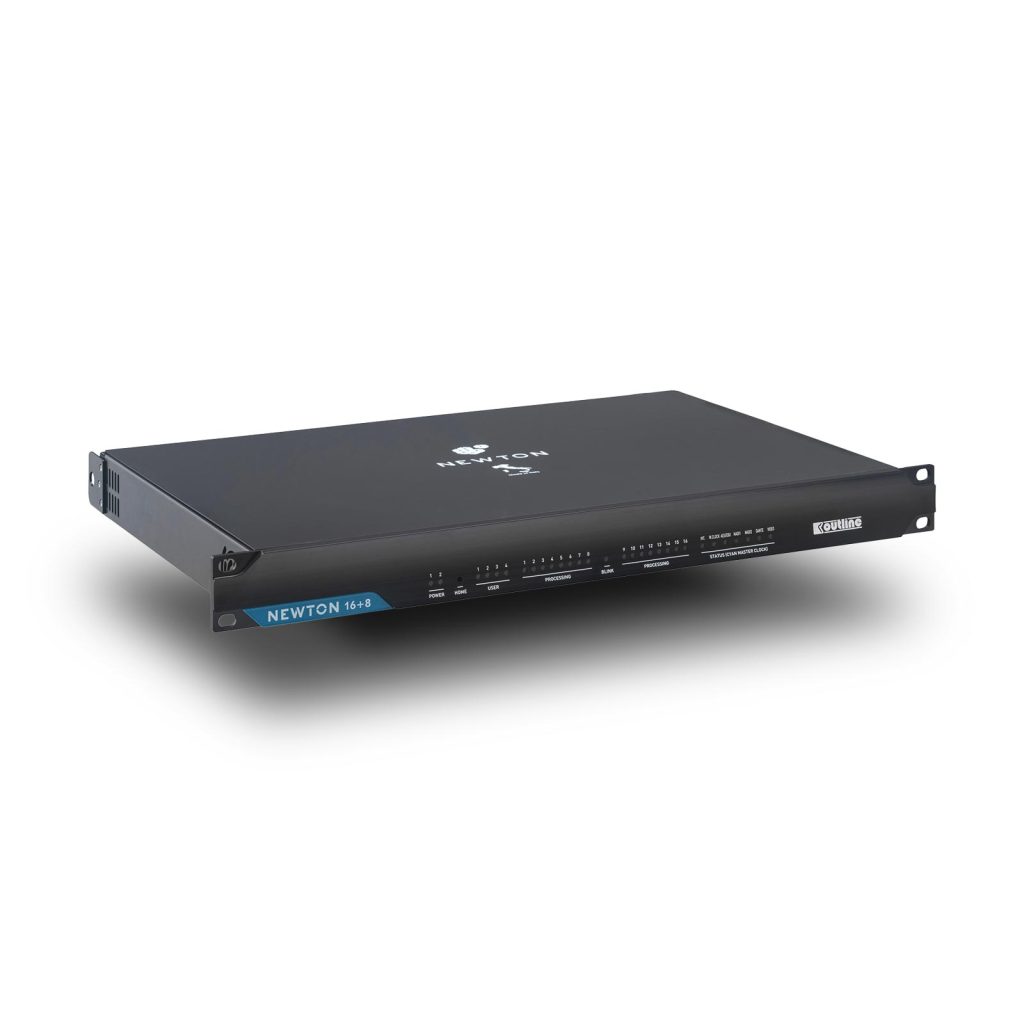

Newton 16, Newton 16+4 and Newton 16+8. Newton 16 offers simultaneous signal connections over Dante™(AES67 compliant), AES3, MADI Optical and MADI Coaxial, with the capability of fully processing 216 Inputs and 216 Outputs simultaneously.
All processed signals and direct outputs can be routed out of Newton using any of the available audio standards. This, as just one example, would allow signals to be received over MADI, processed and then transmitted to multiple amplifiers on Dante with an AES3 output for backup. This direct out, processing and routing ability can also be used to create a backbone for a multiple Newton Network to share signals.
Internal processing is all at 96 kHz, with an internal data depth up to 64 bits. In each processing section users have precise control over Level, Delay, Polarity and Raised Cosine Filters (implemented within WFIR Equalisers), all functions that are required to manage and optimize a loudspeaker system.
While Newton 16 is an all-digital device, Newton 16+4 and Newton 16+8 add the useful capability of local analog inputs and outputs.
Newton 16+4 adds 4 auxiliary analog inputs and outputs while Newton 16+8 adds 8 auxiliary analog Inputs and outputs. Each analog input is also provided with additional processing and matrix allowing inputs to be processed, routed and mixed into the main matrix. All three versions of Newton share the same motherboard and it is possible to upgrade from Newton 16 to Newton 16+4or Newton 16+8.
Each Newton processor combines powerful WFIR filters (unique to Outline), clock management and a very high number of input and output channels (216 x 216). Internal synchronous and asynchronous sample rate converters manage all I/O operations and Newton can be synchronised with any one of the 14 choices of clock sources. Mix and Match Matrix I/O routing allows translation and re-distribution of digital audio over multiple standards simultaneously.
Combining power and flexibility with an easy to use control interface, Newton forms the nucleus of next generation audio systems. Multiple Newton devices are easily interconnected to form a network that is scalable to meet all audio applications. Powerful processing features and multiple audio network standards combine to make Newton the ideal control core for any audio system from Touring to Live Broadcast Events and Fixed Installations.
2 REDUNDANT POWER SUPPLIES
USB OTG (ON THE GO)
ETHERNET SWITCHED 100/1000 BASE-T(PORT1, PORT2, PORT3, PORT4)
COAXIAL INPUT AND OUTPUT, BOTH CAPABLE OF 64 MADI CHANNELS
OPTICAL INPUT AND OUTPUT, BOTH
CAPABLE OF 64 MADI CHANNELS
VIDEO SYNC INPUT
WORDCLOCK INPUT / OUTPUT
8 AES3 INPUTS / OUTPUTS
(PROVIDING A TOTAL OF 16 INPUT AND 16 OUTPUT CHANNELS)
RS485 CONTROL
GP I/O (2 IN AND 2 OUT)
8 ANALOGUE INPUTS / OUTPUTS
